How Does NDT-RAM Work?

How Does NDT-RAM Work?

Understanding Resonant Inspection with NDT-RAM

To help explain the Resonant Acoustic Method (NDT-RAM), let’s consider how a person can determine between a good bell Good and a cracked bell Bad

NDT-How-it-works-product-1

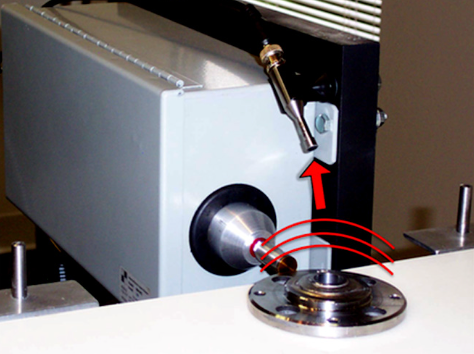

Impact the Part

The part can either be impacted with a manual hammer or an industrial electric hammer. It is important to excite the part with a proper, repeatable force. This will improve the repeatability and reliability of the test.

NDT-How-it-works-product-2

Measure the Response

A microphone is used to provide accurate acoustic measurement of the component's resonant frequency and amplitude values. The NDT microphone provides a perfect fit of price, accuracy and dependability.

NDT-How-it-works-diagram-3

Process the Data and Quantify the Results

Changes in mass, stiffness and damping due to certain defects can cause...

  • resonant frequency peaks to shift in both frequency and amplitude.
  • resonant frequency peaks to shift frequency but maintain amplitude.
  • peak shifts with more pronounced splits in resonant frequency.
  • resonant frequency peak energy to disappear completely.

The family of NDT-RAM systems range from a portable manual system ideal for parts investigation and troubleshooting, to a semi-automated system for easy integration into your existing process, to a fully automated conveyor-based or drop test fixture system as a turn-key solution for 100% parts inspection.
